GaitScan™ Features

Dynamic Scanning Dynamic Scanning

As your patient walks across the GaitScan™ plate, 4096 sensors are set to scan the plantar surface of the foot in motion. The GaitScan™ system records timing sequences during gait and captures the relative pressure for each of ten distinct anatomical landmarks. The result is the detection of imbalances and other indicators of common lower limb pathologies.

Pressure Mapping Pressure Mapping

GaitScan™ gives you the ability to view a patient’s plantar pressure distribution in both 2D and 3D. The synchronized mode allows for a direct right and left foot comparison and displays the centre of pressure or "gait line" of the foot throughout the gait cycle. Detailed images allow for the easy identification of high pressure areas and existing biomechanical inefficiencies.

No Cost Reporting No Cost Reporting

GaitScan™ provides complimentary, ready-to-print dynamic reports that can be evaluated by either the practitioner or our on-site clinical team. These reports can also serve as supporting assessment documentation within your clinic, or for use with the processing of insurance claims.

Patient Education Patient Education Animations

State-of-the-art 3D animations help patients to understand common lower limb conditions and convey the benefits of orthotic therapy.



Digital Casting Smart Ordering System

TOG Client Software guides you through the entire ordering process. Assistive graphics and a sideboard order summary help you to build your orthotic prescription from start to finish. Patient orders can be transmitted and marketing supplies requested at the touch of a button.

Portable Hardware and Network Friendly Software Portable Hardware and Network Friendly Software

GaitScan™ featuring TOG Client Software can be used virtually anywhere. USB connectivity allows for easy off-site usage, while networking capabilities facilitate patient record access in multiple treatment rooms.

Plate Specifications

Dimensions Lx Bx H(m): 578mm x 418mm x 12mm
Weight: 4.2kg
Number of Sensors: 4096 (arranged in a 64 x 64 matrix)
Sensor Dimensions: 7.62mm x 5.08mm
Active Sensor Area: 488mm x 325mm
Sensor Technology: Resistive
Pressure Range: 0 - 200n/cm²
Data Acquisition Frequency: 300hz
Resolution: 8 bits
Operating Temperature Range: -15ºC to +30ºC
Storage Temperature Range: -0ºC to +40ºC
Relative Humidity: 20% to 80% non-condensing
Connection to PC: USB 2.0
Plate Cable Length: 4300mm +/- 50mm (integrated cable)


Be advised: The GaitScan plate is not designed to work with MAC computers.

System Requirements:

Operating Systems Supported:
Microsoft Windows™ 10 (64 bit)
Microsoft Windows™ 11 (64 bit)
Editions supported are Home, Professional,
Enterprise and Ultimate (not starter or RT editions)

Computer Hardware:

Processor - Intel Core 2 Due or higher / AMD Phenom II or higher
Memory - 4 GB RAM
Hard Disk - 4 GB available space
Display - Minimum screen resolution of 1024x768 pixels
Internet connection - Required during initial registration and order submission transmission.
USB port - For installation media and scanner hardware connectivity

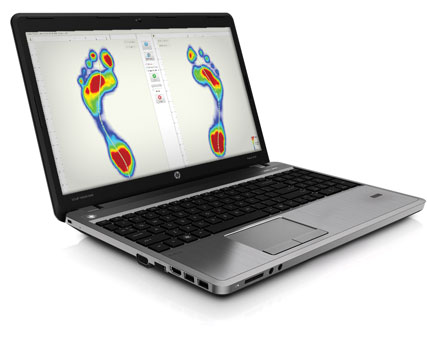

GaitScan Laptop
